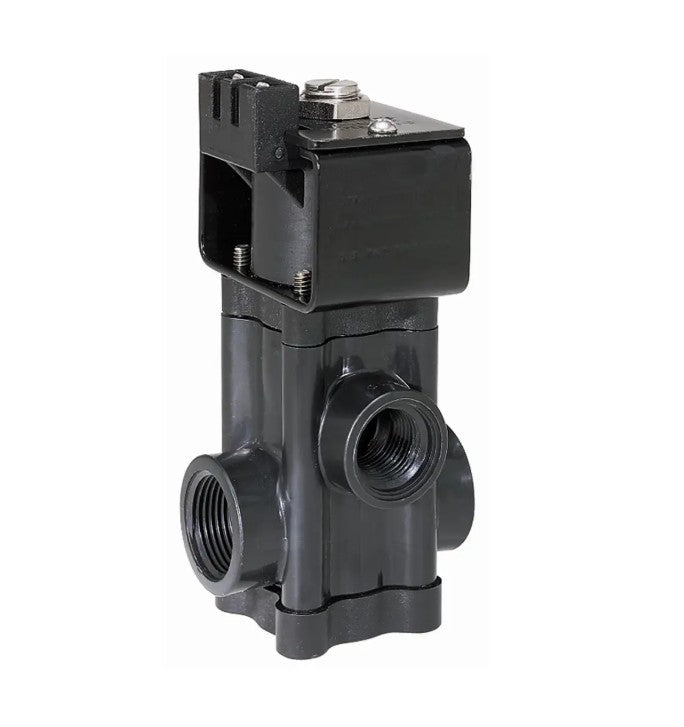

AA144A DirectoValve Electrical Solenoid Control Valve for Pressures up to 100 PSI (7 bar)
- Direct acting; large internal flow chamber without pilot hole reduces chance of clogging.
- Stainless steel wetted parts provide additional corrosion resistance.
- Operate on 12VDC system.
- Maximum pressure 100 PSI
- Encapsulated solenoid coil can be changed without removing valve from system.
- EPDM diaphragms and seat washers.
- 10 GPM flow with only 5 PSI pressure drop.
- 2.5 amp current draw.
- Polypropylene body for chemical resistance.
- Fabric reinforced diaphgrams.
